Abdomen Phantom

28 sharp and blurred liver lesions

SKU: 508-04

This abdomen phantom can be used in CT for evaluation of classification tasks. It was designed to enable evaluation of diagnostic software, including AI tools.

Add to quote list

The phantom simulates a contrast medium enhanced abdomen in early portal venous phase and has 28 liver lesions of two different types.

The phantom provides a detailed and realistic simulation of soft and bone tissue, including small details such as lymph nodes. Air voids are filled with a cellulose-polymer composite of approx. -80 HU.

The phantom can be used for detection, segmentation and classification tasks and other common methods of image quality evaluation.


DOWNLOAD DATA SHEET

Specifications

Size: Approx. 268 x 189 x 149 mm
Weight: Approx. 5400 g
Base material: Cellulose-polymer composite
Optimal tube voltage: 120 kVp (cf page 5) – adaptable upon request –

Diagnostic features

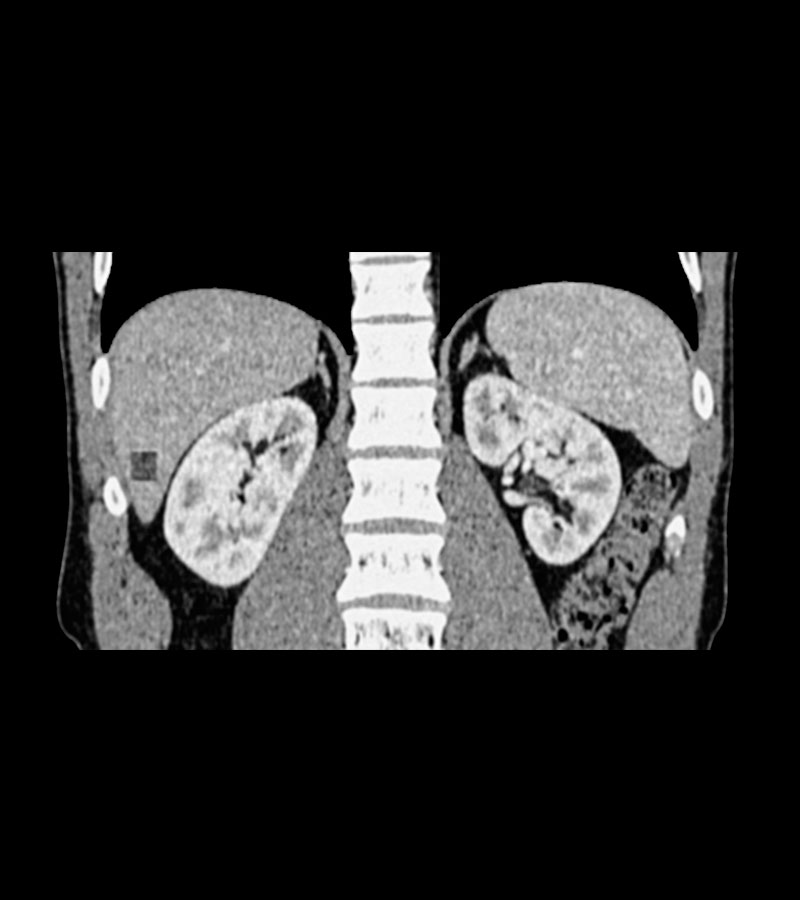

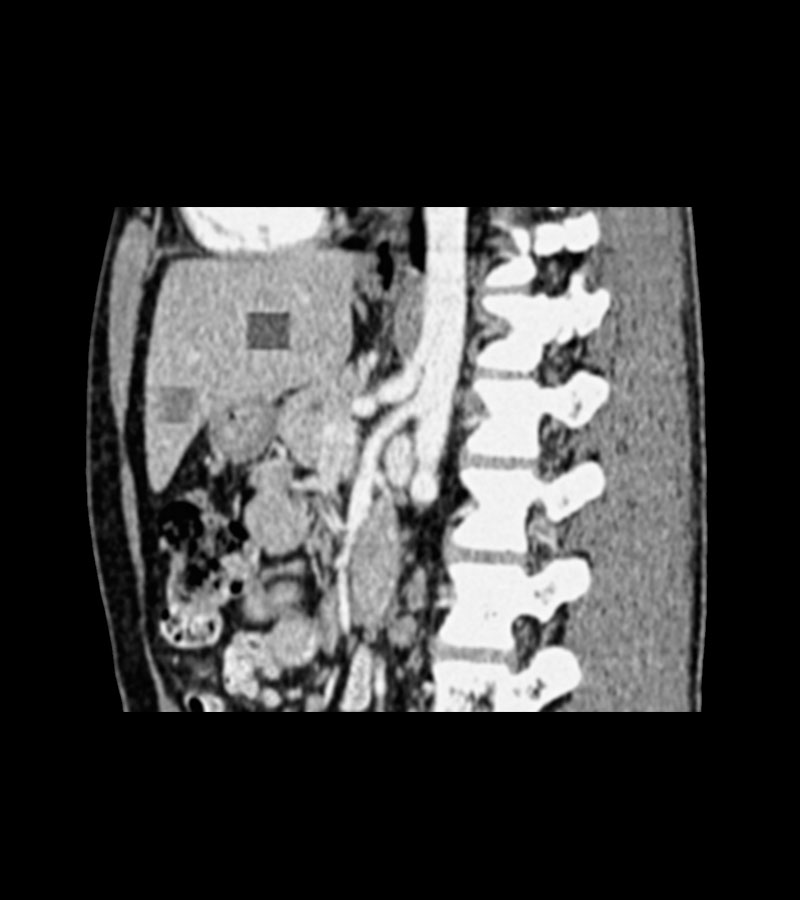

28 rod-shaped liver lesions in 6 sections
Lesion height: 10.9 mm

Lesion type 1

Diameter: 15 mm
Contrast: approx. -100 HU at 120 kVp
Edge: sharp, e.g., as in cysts

Lesion type 2

Diameter: 16 mm
Contrast: approx. -80 HU at 120 kVp
Edge: blurred, e.g., as in metastases
Section 1: 3 lesions
Section 2: 10 lesions
Section 3: 9 lesions,
Section 4: 3 lesions
Section 5: 2 lesions
Section 6: 1 lesion
