Specifications
| Size: | Approx. 268 x 189 x 149 mm |
| Weight: | Approx. 5400 g |
| Base material: | Cellulose-polymer composite |
| Optimal tube voltage: | 120 kVp (cf page 4) – adaptable upon request – |
Abdomen Phantom27. November 2021
Abdomen Phantom
5 sharp and blurred pancreatic lesions
SKU: 508-08

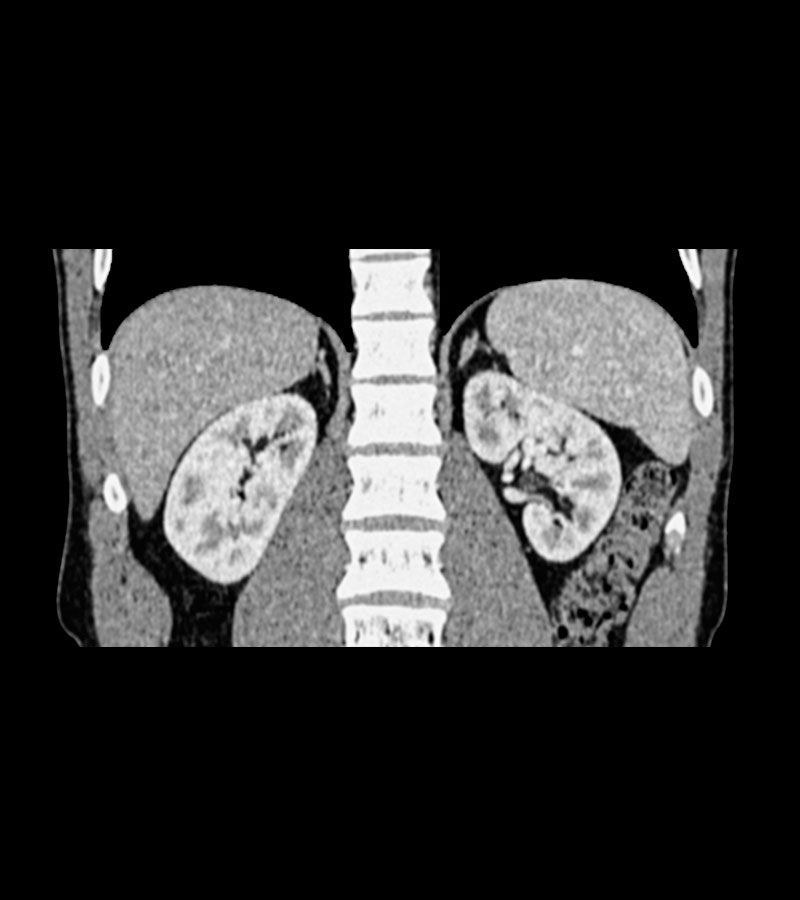

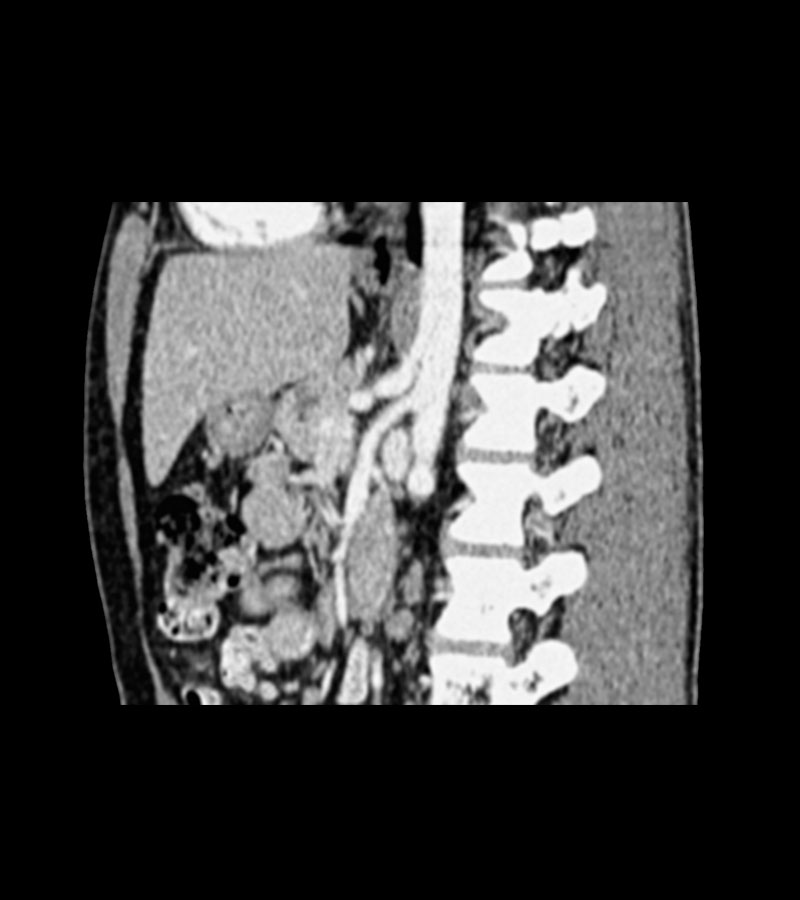

This abdomen phantom can be used in CT for classification tasks. It was designed to enable evaluation of diagnostic software, including AI tools.
The phantom simulates a contrast medium enhanced abdomen in early portal venous phase and has 5 pancreatic lesions.
The phantom provides a detailed and realistic simulation of soft and bone tissue, including small details such as lymph nodes. Air voids are filled with a cellulose-polymer composite of approx. -80 HU.
The phantom can be used for detection, segmentation and classification tasks and other common methods of image quality evaluation.
DOWNLOAD DATA SHEET
Diagnostic features
| 5 rod-shaped pancreatic lesions |
| Lesion height: 10.9 mm |
| Lesion position | Approx. contrast at 120 kVp | Diameter | Edge |
| Head | -100 HU | -11 mm | -sharp |
| Head | -80 HU | 13 mm | blurred |
| Neck | -100 HU | 10 mm | sharp |
| Body | -80 HU | 12 mm | -blurred |
| Tail | -100 HU | 8 mm | sharp |
Data Sheet
