Abdomen Phantom

Name: Abdomen Phantom
SKU: 508-09
Price: 10000.00 USD
Availability: InStock

5 sharp and blurred pancreatic lesions

SKU: 508-09

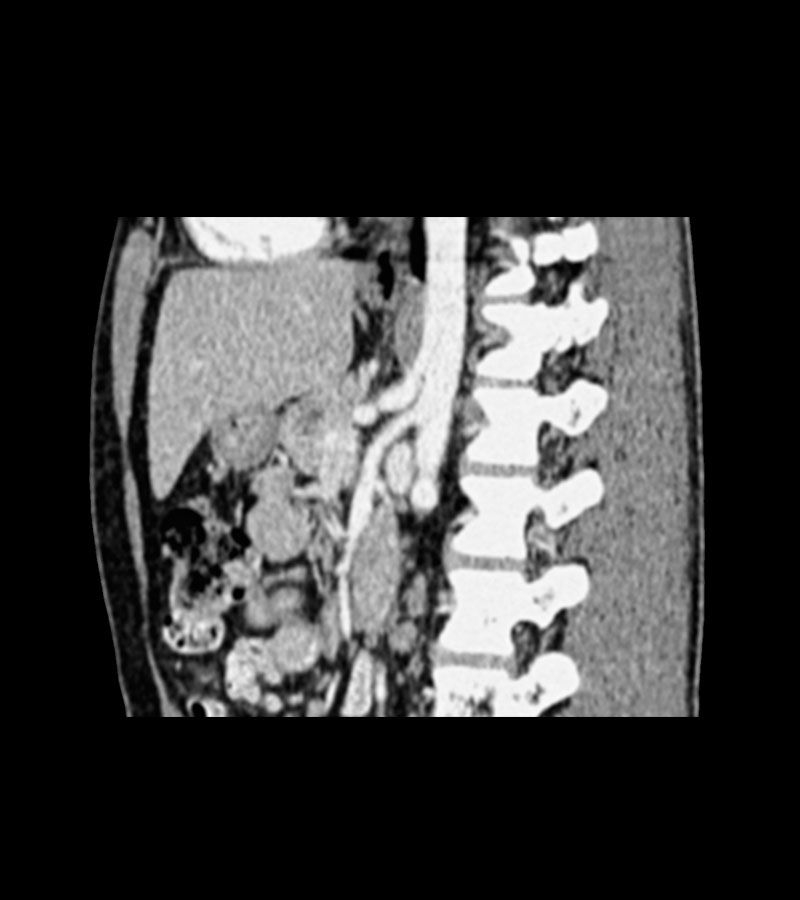

This abdomen phantom can be used in CT for classification tasks. It was designed to enable evaluation of diagnostic software, including AI tools.

The phantom simulates a contrast medium enhanced abdomen in early portal venous phase and has 5 pancreatic lesions.

The phantom provides a detailed and realistic simulation of soft and bone tissue, including small details such as lymph nodes. Air voids are filled with a cellulose-polymer composite of approx. -80 HU.

The phantom can be used for detection, segmentation and classification tasks and other common methods of image quality evaluation.

DOWNLOAD DATA SHEET

Specifications

Size:	Approx. 268 x 189 x 149 mm
Weight:	Approx. 5400 g
Base material:	Cellulose-polymer composite
Optimal tube voltage:	120 kVp (cf page 4) – adaptable upon request –

Diagnostic features

5 rod-shaped pancreatic lesions

Lesion height: 10.9 mm

Lesion position	Approx. contrast at 120 kVp	Diameter	Edge
Head	-80 HU	13 mm	blurred
Head	-100 HU	11 mm	sharp
Neck	-80 HU	11 mm	blurred
Body	-110 HU	10 mm	sharp
Tail	60 HU	8 mm	sharp
Tail	-100 HU	8 mm	sharp
