Abdomen Phantom

Arterial phase

SKU: 509-01

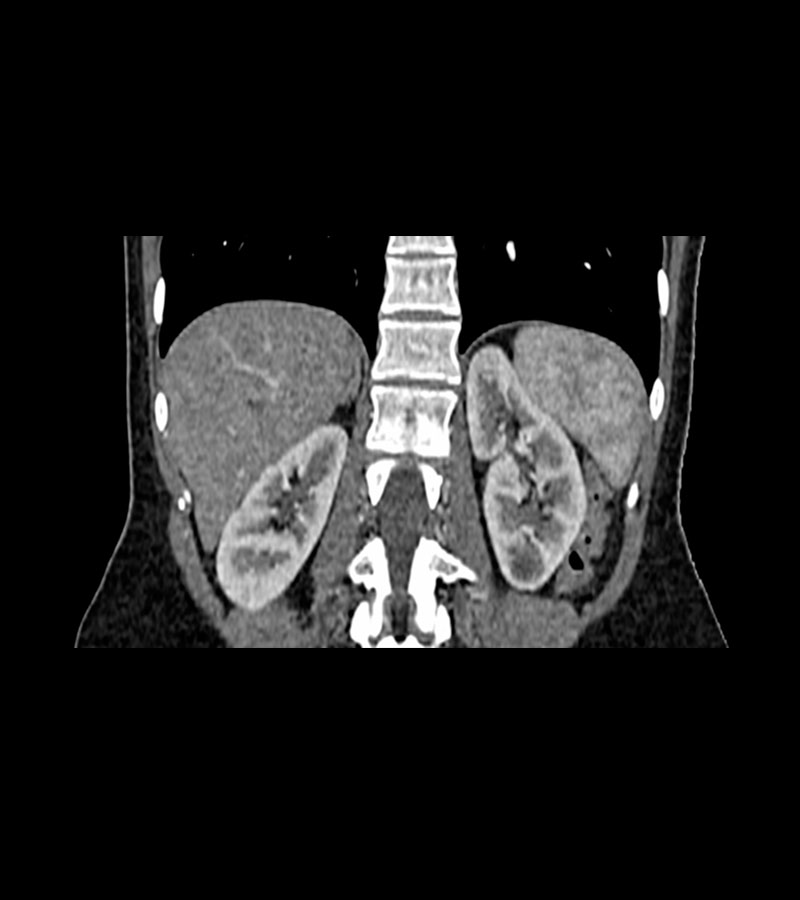

This abdomen phantom can be used in CT for image quality evaluation and for training.

The phantom simulates a contrast medium enhanced abdomen in late arterial phase.

The phantom provides a detailed and realistic simulation of soft and bone tissue, including small details such as lymph nodes. Air voids are filled with a cellulose-polymer composite of approx. -80 HU.

The phantom can be used for common methods of image quality evaluation such as visual grading analysis or contrast-to-noise measurement.



Size: Approx. 267 x 178 x 167 mm
Weight: Approx. 5700 g
Base material: Cellulose-polymer composite
Optimal tube voltage: 120 kVp (cf page 3) – adaptable upon request –

Diagnostic features


Data Sheet

Download Data Sheet
