Hand Phantom

2 metacarpal fractures

SKU: 508-09-1

This hand phantom can be used in CT for image quality evaluation and for training.

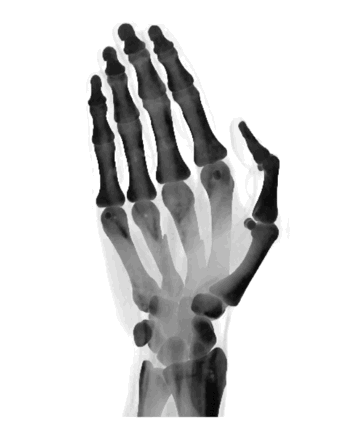

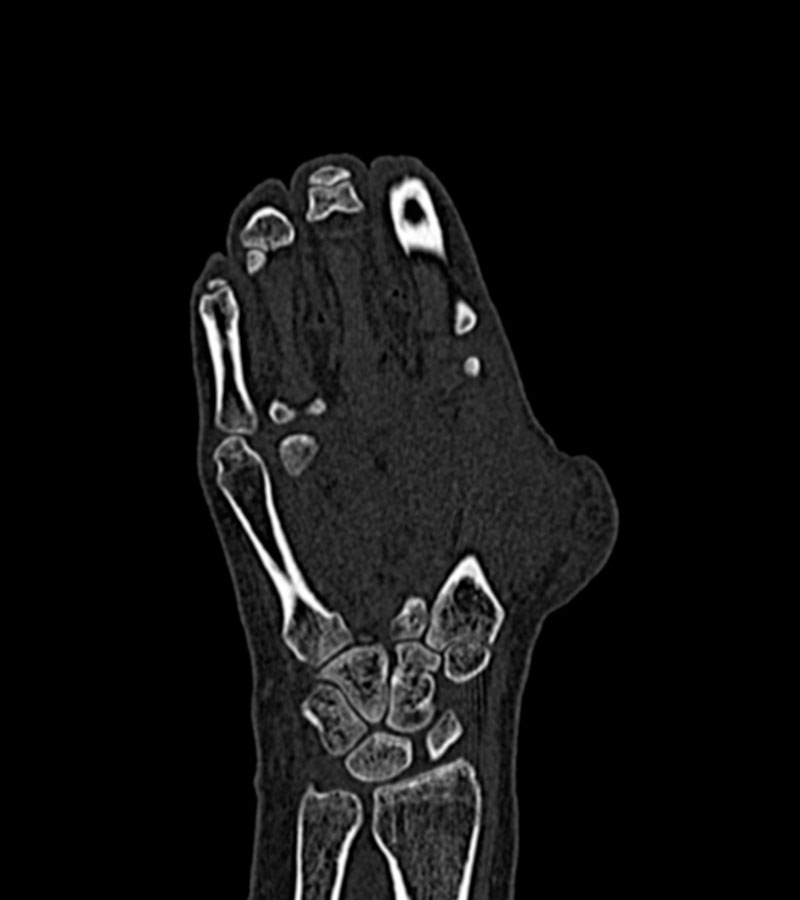

The phantom simulates a non-contrastenhanced right hand with two metacarpal fractures.

The phantom provides a detailed and realistic simulation of soft and bone tissue.

The phantom can be used for common methods of image quality evaluation such as visual grading analysis or contrast-to-noise measurement.


DOWNLOAD DATA SHEET

Specifications

Size: Approx. 109 x 200 x 69 mm
Weight: Approx. 460 g
Base material: Cellulose-polymer composite
Optimal tube voltage: 120 kVp (cf page 3) – adaptable upon request –

Diagnostic features

Fractures of the 3rd and 4th metacarpal
