Head Phantom CTA Aneurysm

Data 24 doses - Photon-counting CT

SKU: D50-03-2
Scanner: Siemens NAEOTOM Alpha
Size (GB): 16.94
Number of images: 34.224
Number of protocols: 72

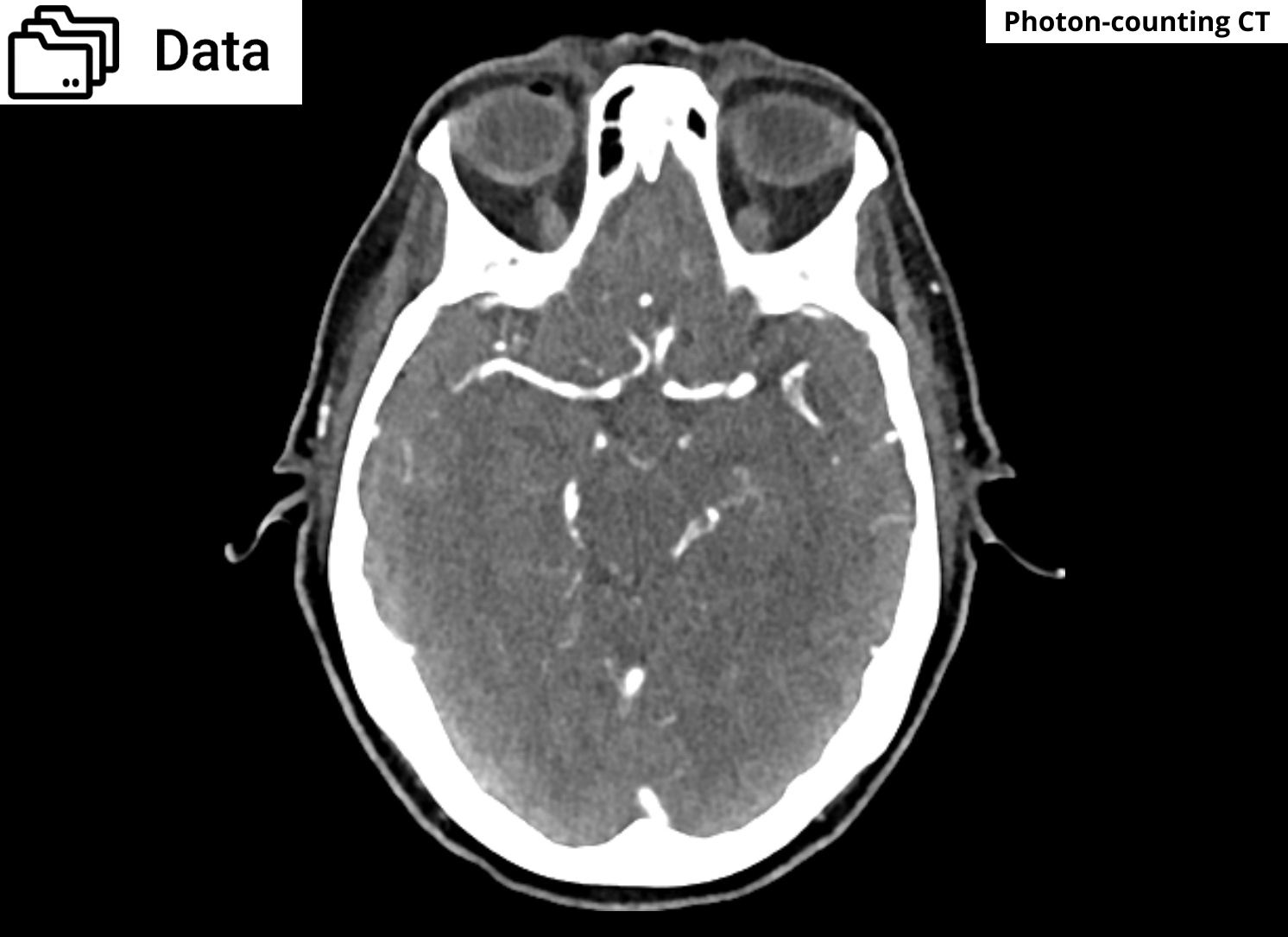

This data set comprises 34.224 axial images of head CTA phantom aneurysm 50-03 acquired with a Siemens NAEOTOM Alpha photon-counting CT scanner.

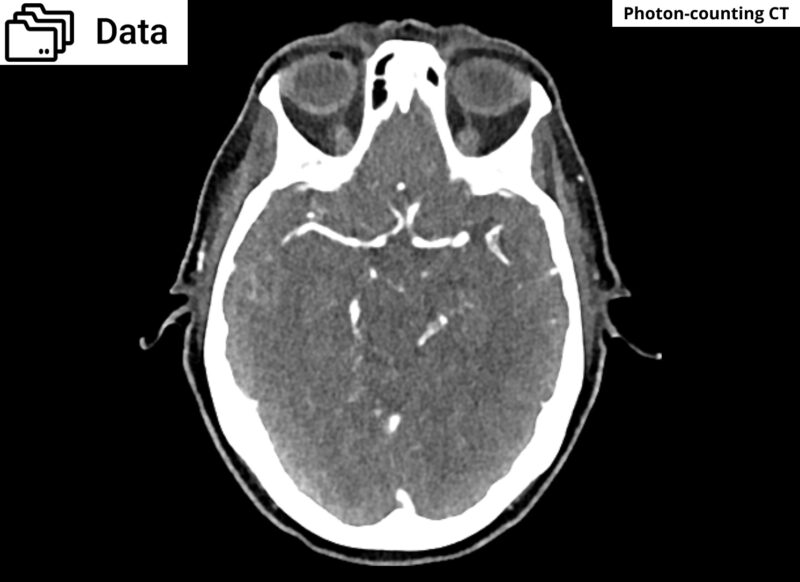

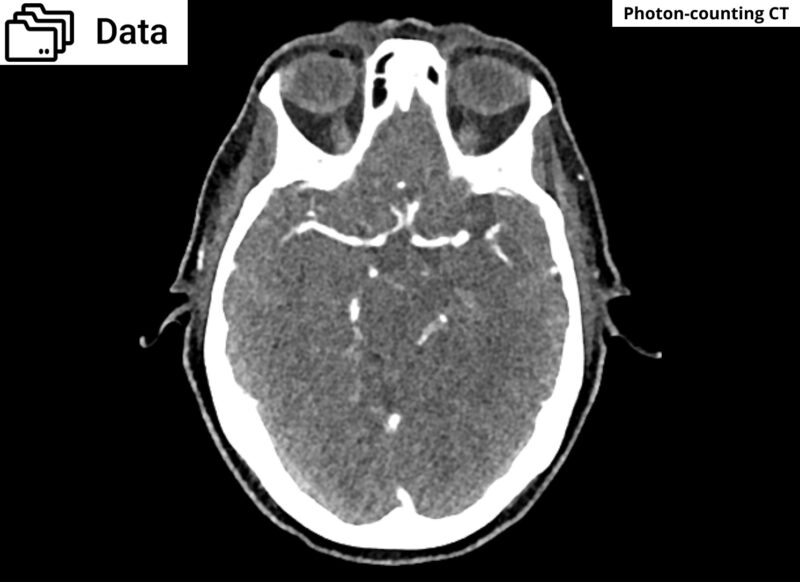

The data is organized in 72 series with 24 doses from 0.4 to 20 mGy reconstructed with the Bv40 kernel. Each series is available with a slice thickness of 0.4 mm, 0.6 mm and 1 mm.

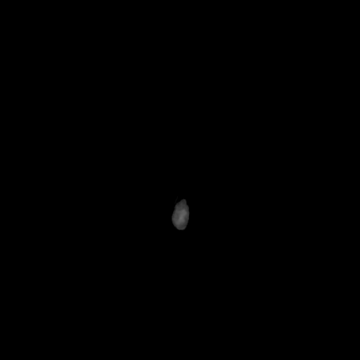

The data provides comprehensive coverage of anatomy and pathology (three intracranial aneurysms) across various doses, all acquired on a state-of-the-art photon-counting CT scanner.


Specifications

Scanner: Siemens NAEOTOM Alpha
Size (GB): 16.94
Number of images: 34.224
Number of series: 72
Repetitions per series: 1
Images per series: 184, 368, 736
Image plane: Axial
Tube voltage (kVp): 120



CTDI (mGy): 0.4, 0.8, 1.0, 1.2, 1.6, 2.0, 3.0, 4.0, 5.0, 6.0, 7.1, 8.0, 9.1, 10.0, 11.0, 12.0, 13.0, 13.9, 15.0, 16.0, 17.0, 18.0, 19.0, 20.0
Tube current (mA): 18, 36, 47, 54, 72, 90, 136, 180, 226, 270, 291, 313, 316, 336, 358, 360, 381, 403, 406, 426, 448, 450, 466
Rotation time (s): 0.278, 0.294, 0.556
Slice thickness (mm): 0.4, 0.6, 1
Slice increment (mm): 0.2, 0.4, 0.8
Kernel types: Brain-CTA
Image reconstruction: Bv40
